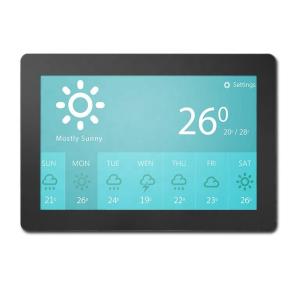

High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP

Place of Origin : Guangdong, China

Model Number : TST101WXBN-17C

Brand Name : TSD

Packaging Details : High Luminance 1280x800 10.1inch TFT LCD Display LVDS 40Pins Interface with CTP
Packed in anti-static bag each,a certain quantity in one carton

Supply Ability : 10000 Piece/Pieces per Month

Price : Negotiable

Display Size : 10.1inch

Type : TFT LCD

Resolution : 1280x800

Active Area : 216.96x135.6mm

Viewing direction : All O'clock

Interface Type : LVDS

Brightness : 800 Cd/m2

Operating Voltage : 3.3V

Backlight : 36LEDs

Surface Treatmnet : Hardness: 6H

TP/Lens : CTP(GT9271)

Port : Shenzhen/Hong Kong

MOQ : Negotiable

Contact Now

Product Description
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
Item
Specification
Display Mode
10.1''/α-Si TFT/IPS/
Transmissive/Normally Black
Part NO.
TST101WXBN-17C
Resolution
1280x(RGB)x800
Outline Size
255.0x178.0x9.1mm
Active Area(WxH)
216.96(H)x135.6(V)mm
View Direction
All O'clock
Pixel Pitch
0.1695x0.1695
Interface
LVDS
Backlight
36LEDs, 360mA, 12.8V
Surface Lumiannce
800nits
Surface Treatment
Hardness: 6H
TP/Lens
With CTP(GT9271)
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
About us
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
Who is TSD?
TEAM SOURCE DISPLAY (TSD) was established in 2004. Head office located in Shenzhen, factory is in Dongguang.

TSD business scope covers TFT LCD / Capacitive touch screen / Monochrome display / HMI development, single-chip production and sales.
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
1. More than 15 years experience, strong background in TFT and P-cap design.
2. Faster Support in Front and After-sales service. Support customer from the products' design to the final products.
3. Local sales and engineer team support in European for good communication.
4. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers. Follow a people-oriented, quality and customer-first approach in all of our dealings, fast developing together with customers.
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
Application
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
What TSD has?
1)TFT:
0.96''-13.3''(TN&IPS). Brightness can be designed per customer's requirement. Polarizer has TV, EWV, Ofilm. All kind of FPC design supported.

2) Passive:
display mode with TN, HTN, STN, FSTN, DFSTN, VA.
Structure has LCD Panel, COB, COG. Connection with Zebra, Pin, FPC, Rubber. Brightness can be designed per customer's requirement.

3)CTP:
we have standard one and also available to make the customization of with different size, shape, color, logo etc. Having G+G, G+F, G+F+F Structure. OCA and OCR Optical Bonding. Cover lens can add AR, AF,AG coating. Driver can be used FT, GT, Atmel,
ILITEK, ST...

4)HMI:
Supporting size 2.4'' 2.8'' 3.2'' 3.5'' 4.3'' 5.0'' 7.0'' 10.1'' Driver has BT8XX from FTDI and etc...
Control graphics and RTP and CTP and audio etc...
Certifications
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
Packing & Delivery
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
Customer Photos
High Luminance 10.1 Hd Tft Lcd Color Monitor , LVDS 40 Pin Lcd Screen CTP
FAQ
Q: How can i find the right product?
A: Please send us your requirements, we will recommend our standard products, if it’s not fit, we will do the necessary adjustment & customization.

Q: How to customize the product?
A: Customized procedures goes like this: Project scope clarification → Fill TSD Requirement Form → Engineering analysis → Cost→Evaluation → Customer confirmation → Providing drawing → Customer confirmation → Sampling → Customer approval → Mass production

Q: Do you accept sample order or small quantity order?
A: Yes, you can place sample orders for testing first, and small quantity order as pilot production (no less than MOQ)

Q: What are the payment terms?
A: We usually accept T/T, Paypal, other terms to be negotiated.

Q: What’s the lead time?
A: Usually 3~5 days for sample orders if goods are in stock, and 4~5 weeks for mass production (basing on the quantity and product)
